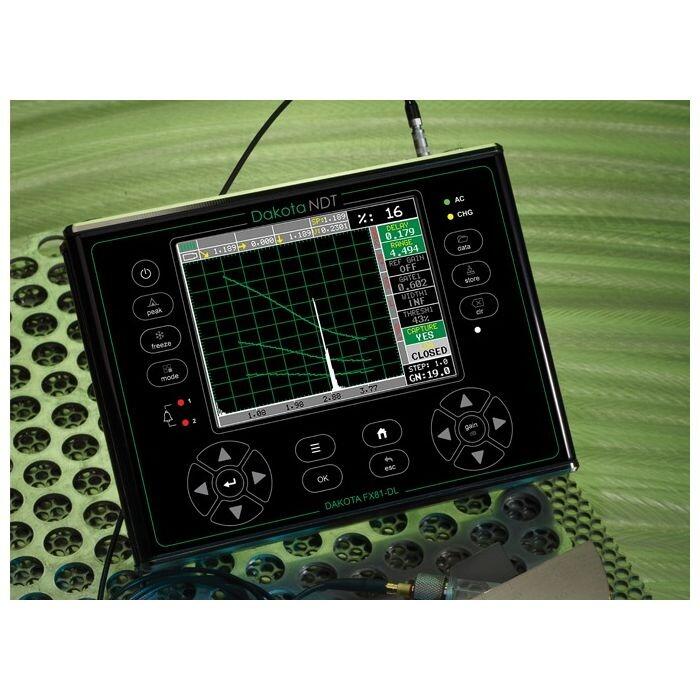

Dakota FX81-DL Benchtop Flaw Detector
Description
Dakota FX81-DL Benchtop Flaw DetectorÂ
The Dakota FX81-DL Bench Top Flaw Detector combines state-of-the-art flaw detection with advanced material thickness capabilities.
The Dakota FX81-DL Flaw Detector is designed for use in the laboratory these gauges are the tool you need for all your flaw detecting needs.
The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge.
Within the grid batching of the Dakota FX81-DL Flaw Detector the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure.
The Dakota FX81-DL Ultrasonic Flaw Detector has a 4Gb internal memory and an external memory card slot which allows up to 64Gb with full data logging via RS232 data output to DakMaster™ data management software.
Specifications:
- Size 216W x 165H x 70D mm
- Weight 2.04kgs
- Power Lithium ion pack - 10.8v - typical operation time 18 hours. Battery Back up
- Certification Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A. Flaw Detector: EN22232-1 compliant
Please view the Product data sheet for full specifications. Contact our team for further informationÂ
Product Data Sheet:
