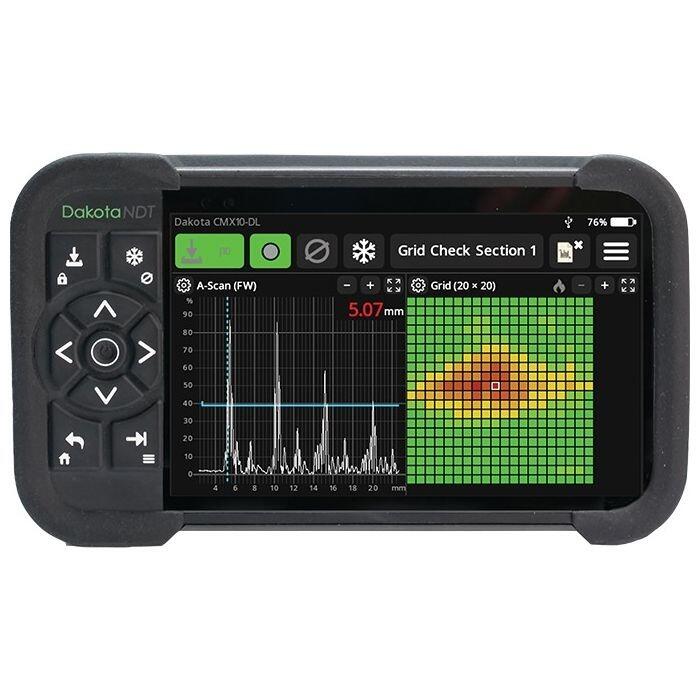

Dakota CMX10-DL

Dakota CMX10-DL Full Wave Capture Thickness Gauge

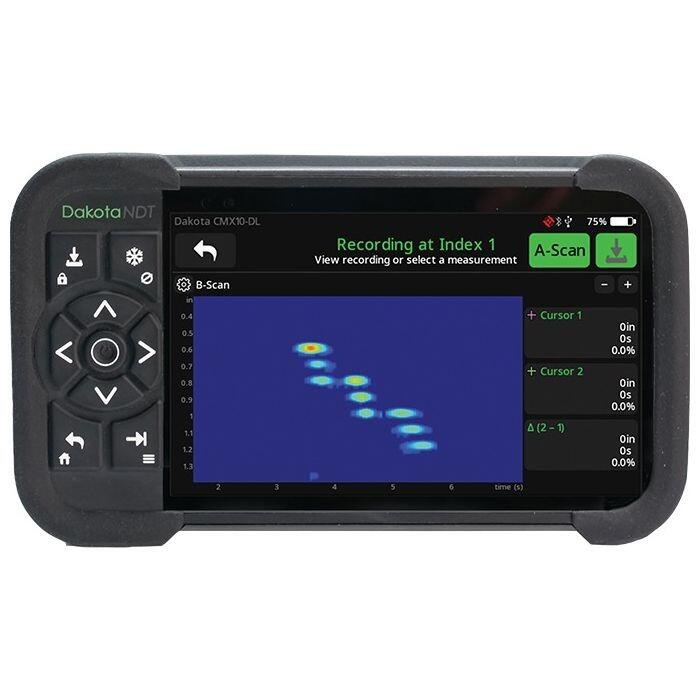

This is not just another A- Scan thickness gauge, this is an A- Scan gauge with full wave recording, B- Scan, TCG and 2nd layer, corrosion & precision thickness in one easy to use, affordable gauge.

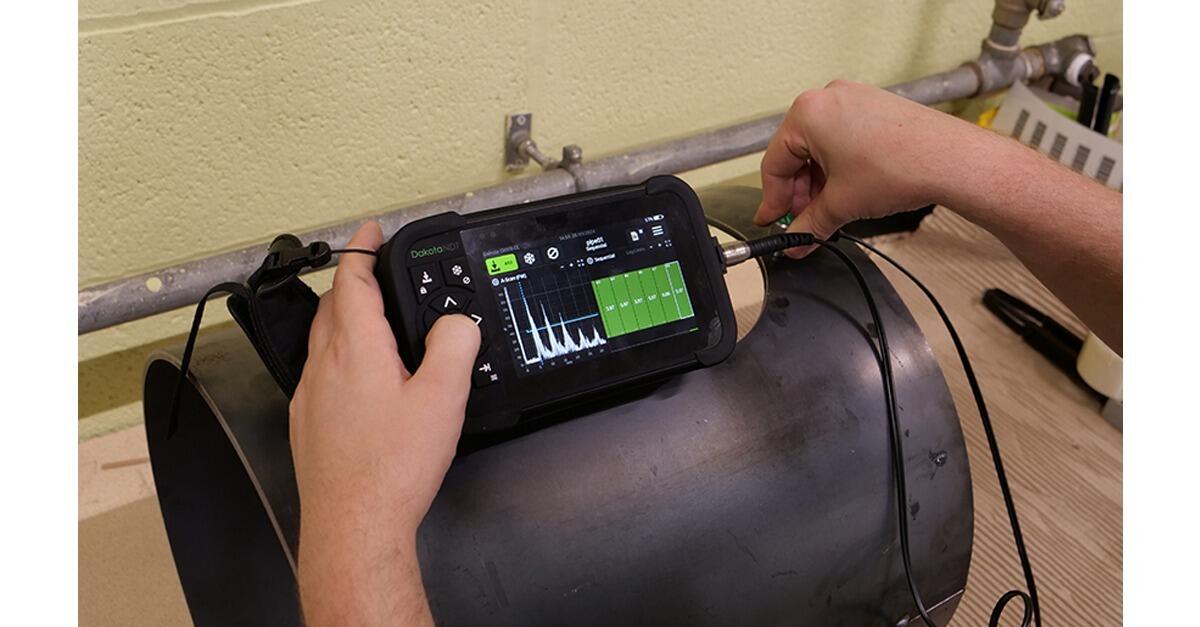

Incredibly user friendly

The Dakota CMX10-DL Full Wave Capture Thickness Gauge is easy to navigate, simple to set up, all functions and features can be selected from the Menu icon. Create up to 50 custom setups for routine thickness inspections.

Confident probability of detection

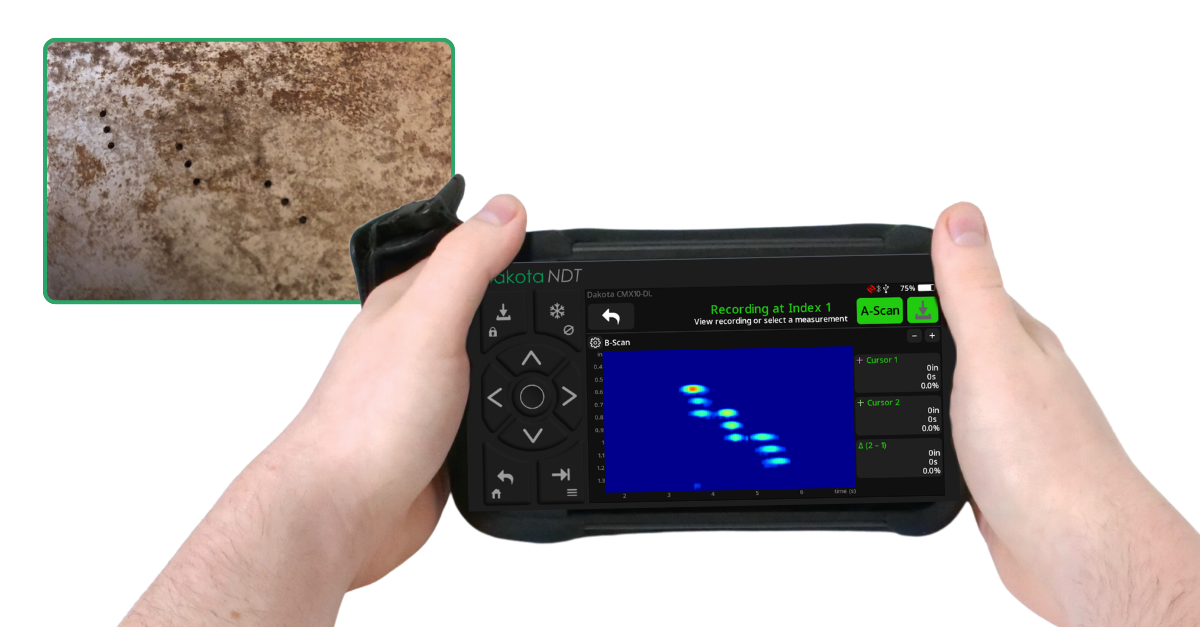

The Dakota CMX10-DL A-Scan Thickness Gauge boosts confidence in probability of detection (POD) through visual waveform analysis, signal optimization tools, and stability indicators that help inspectors verify and reduce false negatives on defects like pits or corrosion.

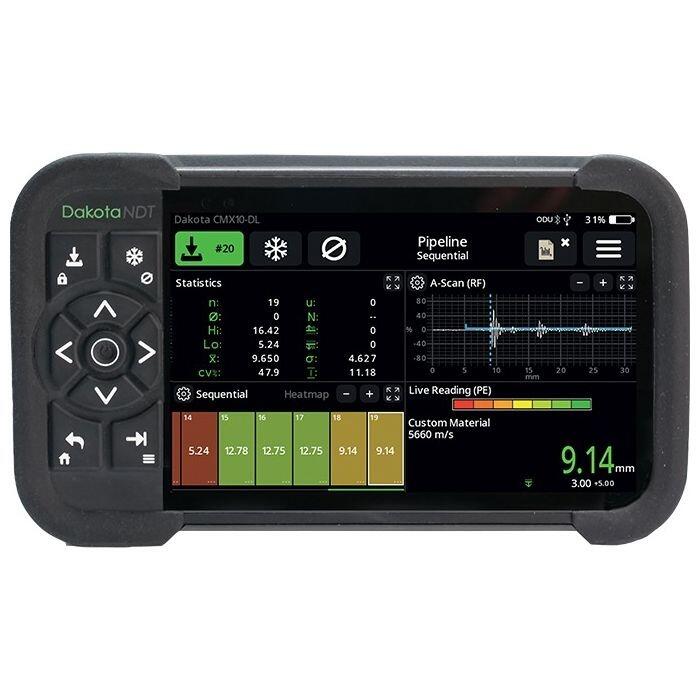

The Dakota CMX10-DL is a powerful ultrasonic full wave thickness gauge designed for both corrosion surveys and high-precision measurements, in a rugged, field-ready package inspectors can rely on every day.

Features:

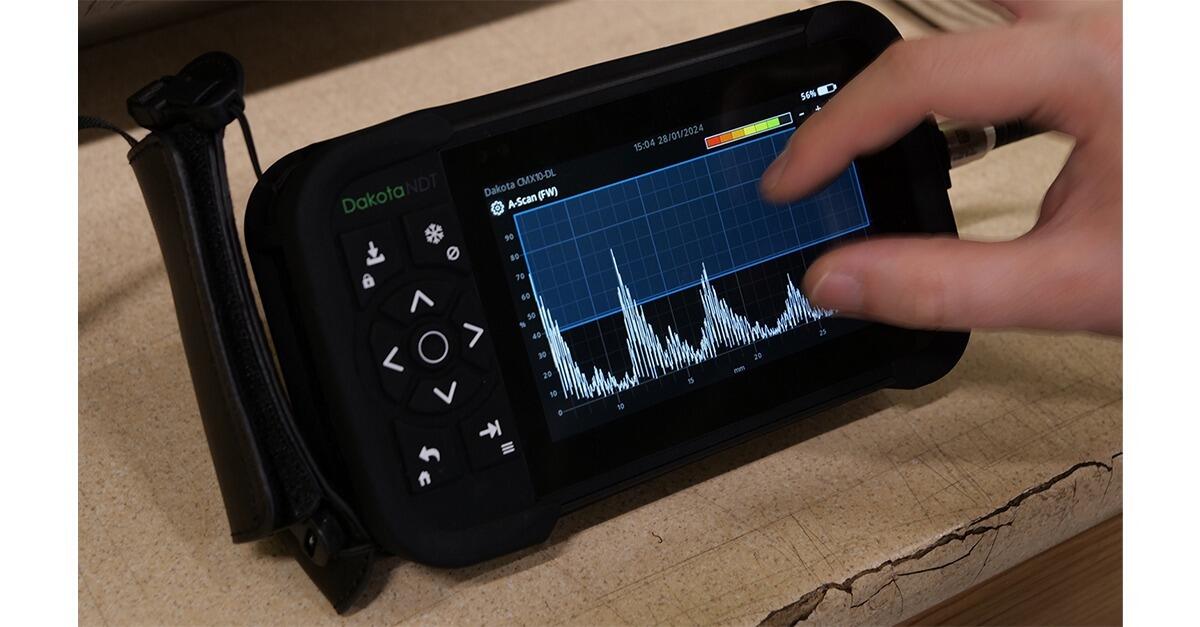

• Touchscreen and button keypad supports operation in the harshest environments.
• Heavy duty, rubberized, impact resistant, dust and waterproof case up to IP65.
• Up to 20,000 A-Scans on 128MB internal storge or approximately 5 million on a 32GB external memory card.
• Up to 15 hours battery life with LI-Ion Rechargeable Smart Battery or Mains Power Supply.
• Enhanced Time Corrected Gain (TCG) & Backwall Echo Attenuation (BEA), improving detection of porosity, inclusions, and cracks.
• Compatible with DakMaster™ for instant report generation and firmware updates.

Specifications

Weight 827g (fully portable)

Gauge dimensions 180W x 105H x 50D mm

Batterry life 9 - 15 hours from a single full charge

Certification Designed for EN 15317

For further information below please see the data sheet below - or https://www.testrade.co.uk/contact-us

Product Data Sheet
